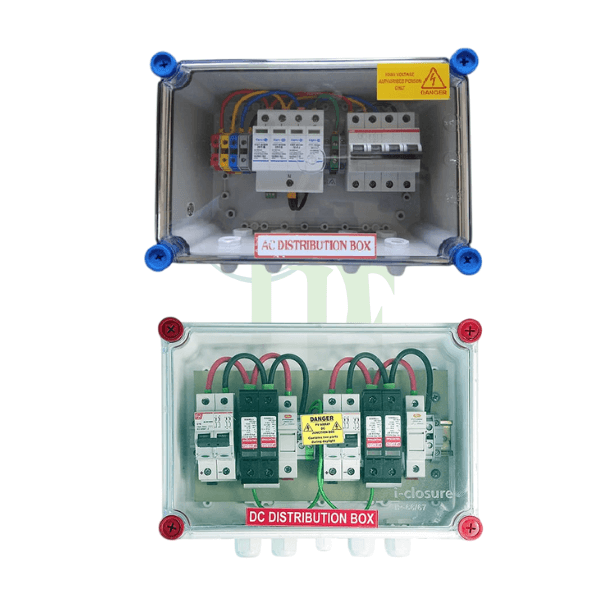

The 4–6KW DCDB (2 In 2 Out) is a highly reliable DC Distribution Box designed to ensure safe, efficient, and controlled power distribution on the DC side of solar photovoltaic (PV) systems. It connects two solar PV string inputs and provides two protected outputs to inverters, ensuring complete DC protection and smooth operation of your solar installation.
This DCDB is equipped with 500V DC MCBs and Type 2 SPDs to protect your system from overload, short circuits, and surge voltages caused by lightning or transient grid faults. Its robust and weather-resistant design ensures long-lasting protection in all environmental conditions.
| ITEM | DESCRIPTION | MAKE | QTY |
|---|---|---|---|
| ABC ENCLOSURE | 280 X 190 X 130 TRANSPARENT | ELECTRO | 1 |
| DC MCB | 500V, 16A | POLYCAB | 1 |
| DC SPD | 600V, TYPE 2 | FINDER | 1 |
| TERMINAL | 6SQMM (KUT6), GREEN (KUT6) | ELMEX | 2 |
| END CLAMP | SCKN | ELMEX | 2 |
| END PLATE | KPX | ELMEX | 2 |
| DC CABLE | 45SQMM | WAACABLE | LOT |
| MCB CHANNEL | – | STANDARD | LOT |
| LUGS | – | JIGO | LOT |
| CABLE GLAND | PG13.5 (2), PG9 (1) | JIGO | 5 |
